PTFE / PFA / FEP Lined Pipes

Our fluoropolymer lined pipes are engineered for superior chemical resistance and durability. Ideal for handling aggressive media in the most demanding industrial applications.

Available Sizes:: 15 NB to 1200 NB
Lining Materials:: PTFE, PFA, FEP
Design Standards:: ASME B16.5, B16.47, MSS SP-44
Pressure Rating:: Up to Class 150 / PN 16
Temperature Range:: -50°C to +260°C
Applications:: Chemical, Petrochemical, Pharmaceutical, Food Processing

Product Overview

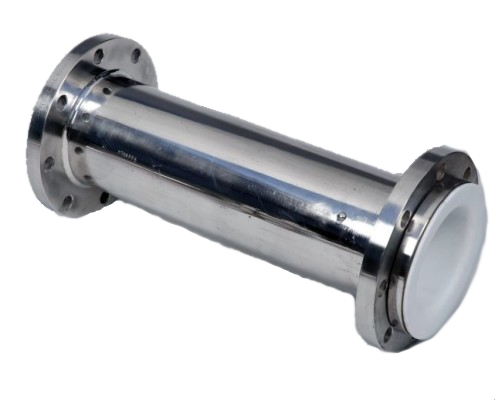

PTFE / PFA / FEP lined pipes consist of a metallic outer shell lined with high-performance fluoropolymers to provide exceptional resistance against corrosive chemicals, high purity, and extreme temperatures. These pipes combine the strength of steel with the inertness of fluoropolymers, ensuring long service life and reduced maintenance.

Industries Served:

Chemical Processing
Petrochemical Plants
Pharmaceutical Industry
Food & Beverage
Water Treatment

Technical Specifications

Nominal Bore (NB)	15 NB to 1200 NB
Lining Material	PTFE / PFA / FEP
Design Standards	ASME B16.5, B16.47, MSS SP-44
Pressure Rating	Up to Class 150 / PN 16
Temperature Range	-50°C to +260°C
End Connections	Flanged, Butt Weld, Socket Weld
Outer Pipe Material	Carbon Steel, Stainless Steel
Applications	Chemical, Petrochemical, Pharmaceutical, Food Processing

✓

Corrosion Resistant

Exceptional resistance to aggressive chemicals and corrosive environments.

℃

Temperature Durable

Performs reliably in extreme temperature conditions from -50°C to +260°C.

✓

Long Service Life

High-quality lining ensures durability, reduced wear and extended service life.

☆

High Purity

Ideal for high-purity and contamination-free process applications.
